Camera Class Reference

#include <Camera.hpp>

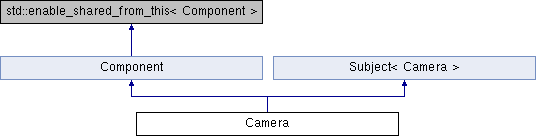

Inheritance diagram for Camera:

Public Member Functions
	Camera ()
	Camera (float nearClipPlane, float farClipPlane, float fov, float ratio)
virtual	~Camera ()
void	computeModelViewMatrix ()
glm::mat4	getModelMatrix ()
glm::mat4	getMVPMatrix ()
glm::mat4	getProjectionMatrix ()
glm::mat4	getViewMatrix ()
float	getNearClip ()
float	getFarClip ()
float	getFOV ()
float	getScreenRatio ()
glm::vec3	screenPointToWorld (glm::vec2 pos)
Ray	screenPointToRay (glm::vec2 pos)
Ray	screenPointToRay2 (glm::vec2 pos)
virtual void	init () override
virtual void	destroy () override
virtual void	awake () override
virtual void	tick (float deltaSecods) override
virtual shared_ptr< Component >	clone () override
virtual shared_ptr< ComponentDescription >	getComponentDescription () override
virtual void	deserialize (shared_ptr< ComponentDescription > desc) override
Public Member Functions inherited from Component
	Component ()
virtual	~Component ()
virtual void	setActive (bool isActive)
shared_ptr< Actor >	getActor ()
void	setActor (weak_ptr< Actor > actor)

Additional Inherited Members
Static Public Member Functions inherited from Subject< Camera >
static void	addObserver (shared_ptr< Observer > observer)
static void	removeObserver (shared_ptr< Observer > observer)
Protected Member Functions inherited from Component
void	setCopyMode (bool initWithData)
Static Protected Member Functions inherited from Subject< Camera >
static void	notify (ComponentEventType type, shared_ptr< Component > component, bool isEditor)
static void	notify (ActorEventType type, shared_ptr< Actor > actor, bool isEditor)
Protected Attributes inherited from Component
bool	initWithData
bool	isActive

Detailed Description

Camera Component. This component simulates a camera in a 3D environment. It's the point of view used for rendering the Actors of the World

Constructor & Destructor Documentation

Camera::Camera

(

)

Default Constructor

Camera::Camera	(	float	nearClipPlane,
		float	farClipPlane,
		float	fov,
		float	ratio
	)

Constructor with custom parameters near clip plane, far clip plane, field of vision and screen ratio.

Camera::~Camera ( )

virtual

Default Destructor. Virtual because inherits Component

Member Function Documentation

void Camera::awake ( )

overridevirtual

Component awake override. Computes MVPMatrix

Reimplemented from Component.

shared_ptr< Component > Camera::clone ( )

overridevirtual

Clones current component (Prototype Design Pattern)

Returns

shared_ptr to cloned Camera Component

Implements Component.

void Camera::computeModelViewMatrix

(

)

Computes the current Model View Matrix and puts it into MVPMatrix

Computes the current Model View Matrix

void Camera::destroy ( )

overridevirtual

Component destroy override. Notifies that the camera has been destroyed

Reimplemented from Component.

float Camera::getFarClip

(

)

far clip Getter

float Camera::getFOV

(

)

fov Getter

glm::mat4 Camera::getModelMatrix

(

)

Returns Model Matrix without the scale factor

glm::mat4 Camera::getMVPMatrix

(

)

MVPMatrix Getter

float Camera::getNearClip

(

)

near clip Getter

glm::mat4 Camera::getProjectionMatrix

(

)

projection Matrix Getter

float Camera::getScreenRatio

(

)

screen ratio Getter

glm::mat4 Camera::getViewMatrix

(

)

view Matrix Getter

void Camera::init ( )

overridevirtual

Component init override. Notifies that a new camera has been created

Reimplemented from Component.

Ray Camera::screenPointToRay

(

glm::vec2

pos

)

Transforms a screen point to Ray. Commonly used for transforming mouse position into a Ray

Ray Camera::screenPointToRay2

(

glm::vec2

pos

)

Transforms a screen point to Ray. Commonly used for transforming mouse position into a Ray

glm::vec3 Camera::screenPointToWorld

(

glm::vec2

pos

)

Transforms a screen point to a world point. Commonly used for transforming mouse position into world points

void Camera::tick ( float  deltaSecods )

overridevirtual

Component tick override. Computes MVPMatrix

Reimplemented from Component.

---

The documentation for this class was generated from the following files:

• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/Camera.hpp
• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/Camera.cpp
