Component Class Reference

#include <Component.hpp>

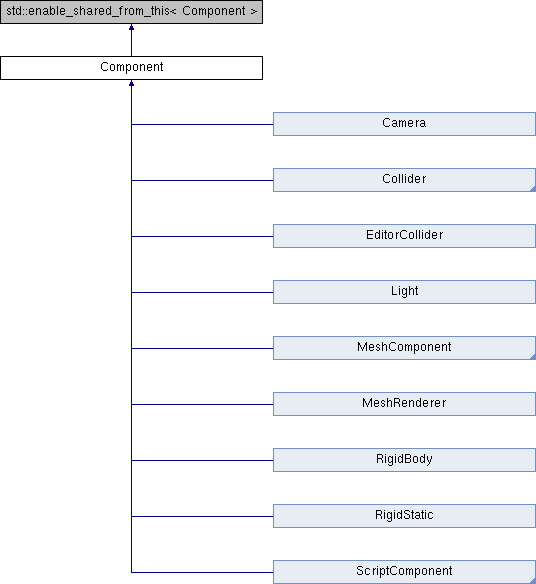

Inheritance diagram for Component:

Public Member Functions
	Component ()
virtual	~Component ()
virtual void	init ()
virtual void	destroy ()
virtual void	setActive (bool isActive)
virtual void	awake ()
virtual void	tick (float deltaSecods)
shared_ptr< Actor >	getActor ()
void	setActor (weak_ptr< Actor > actor)
virtual shared_ptr< Component >	clone ()=0
virtual shared_ptr< ComponentDescription >	getComponentDescription ()=0
virtual void	deserialize (shared_ptr< ComponentDescription > desc)=0

Protected Member Functions
void	setCopyMode (bool initWithData)

Protected Attributes
bool	initWithData
bool	isActive

Detailed Description

Component is the very basis of the engine. All the actor behaviour should come from a component Component-based game engines allow for small, modular classes that are reused very often. Component behaviour can vary from custom ScriptComponent (custom behaviour) to RigidBody physics and MeshRenderer. A Component can only exist in conjunction with an actor. Component is an abstract class and is the parent of all Components.

Constructor & Destructor Documentation

Component::Component

(

)

Default Constructor

Component::~Component ( )

virtual

Default Destructor. Virtual because is parent class

Member Function Documentation

virtual void Component::awake ( )

inlinevirtual

Called by Actor owner when it's first awaken

Reimplemented in Camera, Collider, ScriptComponent, ScaleTool, PlayerScript, MoveTool, RotateHandle, RotateTool, and IncreaseColliderScript.

virtual shared_ptr<Component> Component::clone ( )

pure virtual

Pure virtual function. Clones current component (Prototype Design Pattern)

Returns

shared_ptr to cloned Component

Implemented in Camera, RigidBody, Collider, MeshRenderer, CapsuleCollider, FontMesh, ScriptComponent, EditorCollider, Light, MeshComponent, PlayerScript, RigidStatic, SphereCollider, BoxCollider, MeshFilter, and MeshCollider.

virtual void Component::destroy ( )

inlinevirtual

Destroys Component and release any component-specific members

Reimplemented in Camera, Collider, MeshRenderer, RigidBody, Light, ScriptComponent, and RigidStatic.

shared_ptr< Actor > Component::getActor

(

)

Getter for owner Actor

Returns

shared_ptr for the owner

virtual void Component::init ( )

inlinevirtual

Initializes the component. Initialization should not be done in constructor due to enable_shared_from_this<T> inheritance.

Reimplemented in Camera, Collider, CapsuleCollider, MeshRenderer, RigidBody, Light, SphereCollider, EditorCollider, ScriptComponent, RigidStatic, BoxCollider, MeshCollider, and EditorCameraControl.

void Component::setActor

(

weak_ptr< Actor >

actor

)

Setter for owner Actor

Parameters

owner

Actor

void Component::setCopyMode ( bool  initWithData )

protected

Used when been deserialized or cloned

Parameters

[in]

initWithData

true if this component data will come from clone of deserialization, false if it's a new component being creates

virtual void Component::tick ( float  deltaSecods )

inlinevirtual

Called by actor every frame

Parameters

[in]

deltaSeconds

- last frame duration

Reimplemented in Camera, RigidBody, ScriptComponent, EditorCollider, ScaleHandle, RigidStatic, ScaleTool, PlayerScript, MeshCollider, MoveHandle, RotateOverTime, AddForceScript, MoveTool, RotateHandle, EditorCameraControl, RotateTool, and IncreaseColliderScript.

Member Data Documentation

bool Component::initWithData

protected

Used when been deserialized or cloned

bool Component::isActive

protected

Is component active

---

The documentation for this class was generated from the following files:

• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/Component.hpp
• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/Component.cpp
