MeshComponent Class Reference

#include <MeshComponent.hpp>

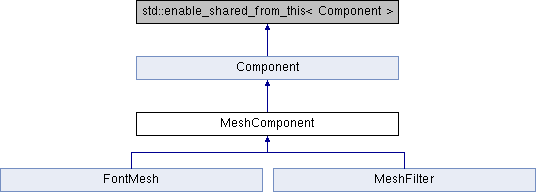

Inheritance diagram for MeshComponent:

Public Member Functions
	MeshComponent ()
virtual	~MeshComponent ()
void	setMesh (shared_ptr< Mesh > mesh)
shared_ptr< Mesh >	getMesh ()
void	getBoxSize (shared_ptr< Actor > actor, PxVec3 &boxSize, PxVec3 &center)
void	getSphereSize (shared_ptr< Actor > actor, float &radius, PxVec3 &center)
void	getCapsuleGeometry (shared_ptr< Actor >actor, float &radius, float &halfHeight, RotateAxis &orientation, PxVec3 &center)
virtual shared_ptr< Component >	clone ()=0
virtual shared_ptr< ComponentDescription >	getComponentDescription () override
virtual void	deserialize (shared_ptr< ComponentDescription > desc) override
Public Member Functions inherited from Component
	Component ()
virtual	~Component ()
virtual void	init ()
virtual void	destroy ()
virtual void	setActive (bool isActive)
virtual void	awake ()
virtual void	tick (float deltaSecods)
shared_ptr< Actor >	getActor ()
void	setActor (weak_ptr< Actor > actor)

Protected Attributes
shared_ptr< Mesh >	mesh
Protected Attributes inherited from Component
bool	initWithData
bool	isActive

Additional Inherited Members
Protected Member Functions inherited from Component
void	setCopyMode (bool initWithData)

Detailed Description

MeshComponent is a Component makes a reference to a Mesh asset. This is important to prevent the same Mesh to live multiple times in memory. This class is inherited used by MeshFilter and FontMesh

Constructor & Destructor Documentation

MeshComponent::MeshComponent

(

)

Default Constructor

MeshComponent::~MeshComponent ( )

virtual

Default Destructor. Virtual because this is a parent class

Member Function Documentation

virtual shared_ptr<Component> MeshComponent::clone ( )

pure virtual

Pure virtual function. Clones current component (Prototype Design Pattern)

Returns

shared_ptr to cloned MeshComponent Component

Implements Component.

Implemented in FontMesh, and MeshFilter.

void MeshComponent::getBoxSize	(	shared_ptr< Actor >	actor,
		PxVec3 &	boxSize,
		PxVec3 &	center
	)

Gets the center and the AABB size for the Actor that this component is attached to

void MeshComponent::getCapsuleGeometry	(	shared_ptr< Actor >	actor,
		float &	radius,
		float &	halfHeight,
		RotateAxis &	orientation,
		PxVec3 &	center
	)

Gets the center and the capsule description for the Actor that this component is attached to

shared_ptr< Mesh > MeshComponent::getMesh

(

)

mesh Setter

mesh Getter

void MeshComponent::getSphereSize	(	shared_ptr< Actor >	actor,
		float &	radius,
		PxVec3 &	center
	)

Gets the center and the radius for the Actor that this component is attached to

void MeshComponent::setMesh

(

shared_ptr< Mesh >

mesh

)

mesh Getter

mesh Setter

Member Data Documentation

shared_ptr<Mesh> MeshComponent::mesh

protected

The Mesh Asset

---

The documentation for this class was generated from the following files:

• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/MeshComponent.hpp
• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/MeshComponent.cpp
